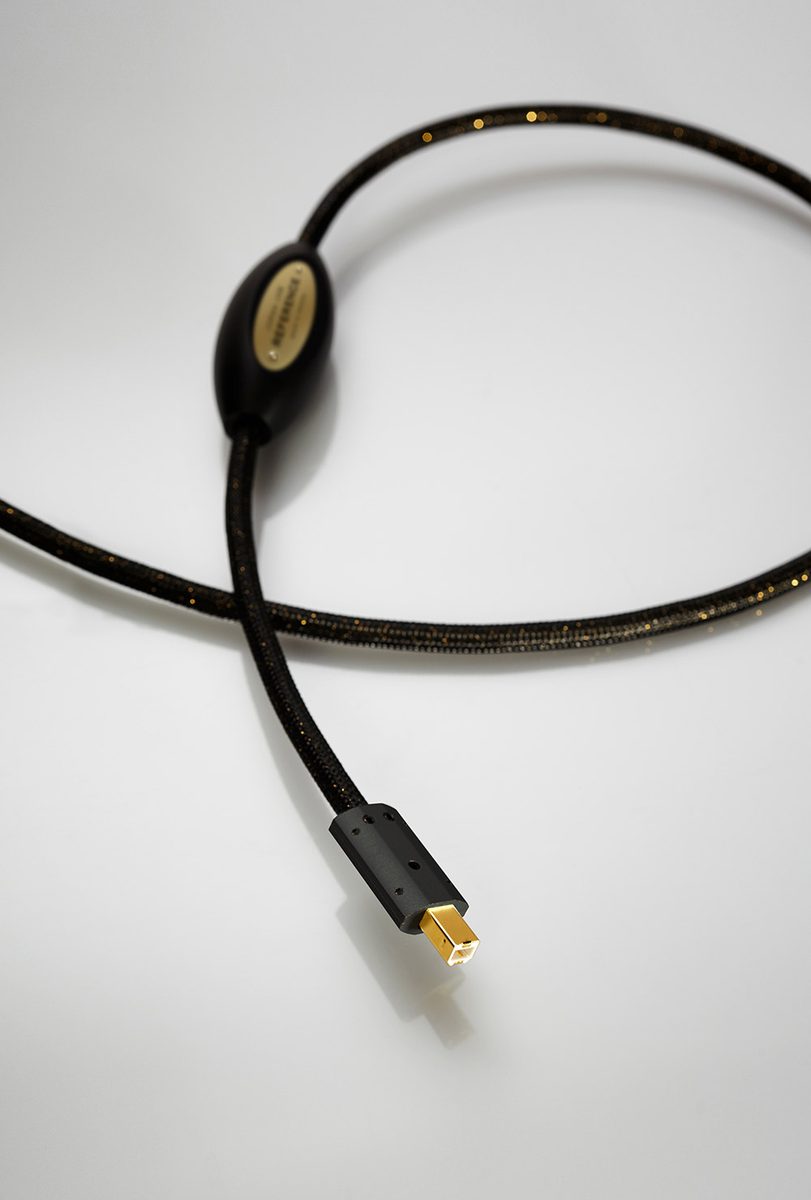

Jorma Reference USB Cable
Prefer to hear it first? We can arrange a demonstration in your own home across Suffolk, Essex and the surrounding areas, with set-up by people who actually listen.
Overview & specification
Jorma USB is the cable to meet those needs.
True connection
Our lives are becoming increasingly digital. Jorma USB is the cable to meet those needs.
Heavily silver plated copper cable
99.999999% pure Copper
Aluminium / PET shielding
Polypropylene insulation
Specifications
Power
Conductor area 0.24 mm2
Number of threads 19/conductor
Thread diameter 0.127mm
Thread material Multi-threaded tin-plated 99.999999 pure copper
Insulation, conductor PE ME6032 red/blue/transparent/black
Conductor diameter 1.1mm
Number of conductors 4 conductors + screen (quad)
Shielding Aluminium / PET foil
Data
Conductor area 0.24 mm2
Number of threads 19/conductor
Thread diameter 0.127mm
Thread material Multi-threaded heavily silver-plated 99.999999 pure copper
Insulation, conductor PE ME6032 red/blue
Conductor diameter 1.7mm
Number of conductors 2 + screen
Shielding Aluminium / PET foil
General
Sleeve PVC rubber
Braided sleeve PET
Filler Cotton
Characteristic Impedance 90 Ohm
